BMW Fxx Diff lift kit - Street

Vantrex differential lift kit - Street – BMW F8X M2/M3/M4

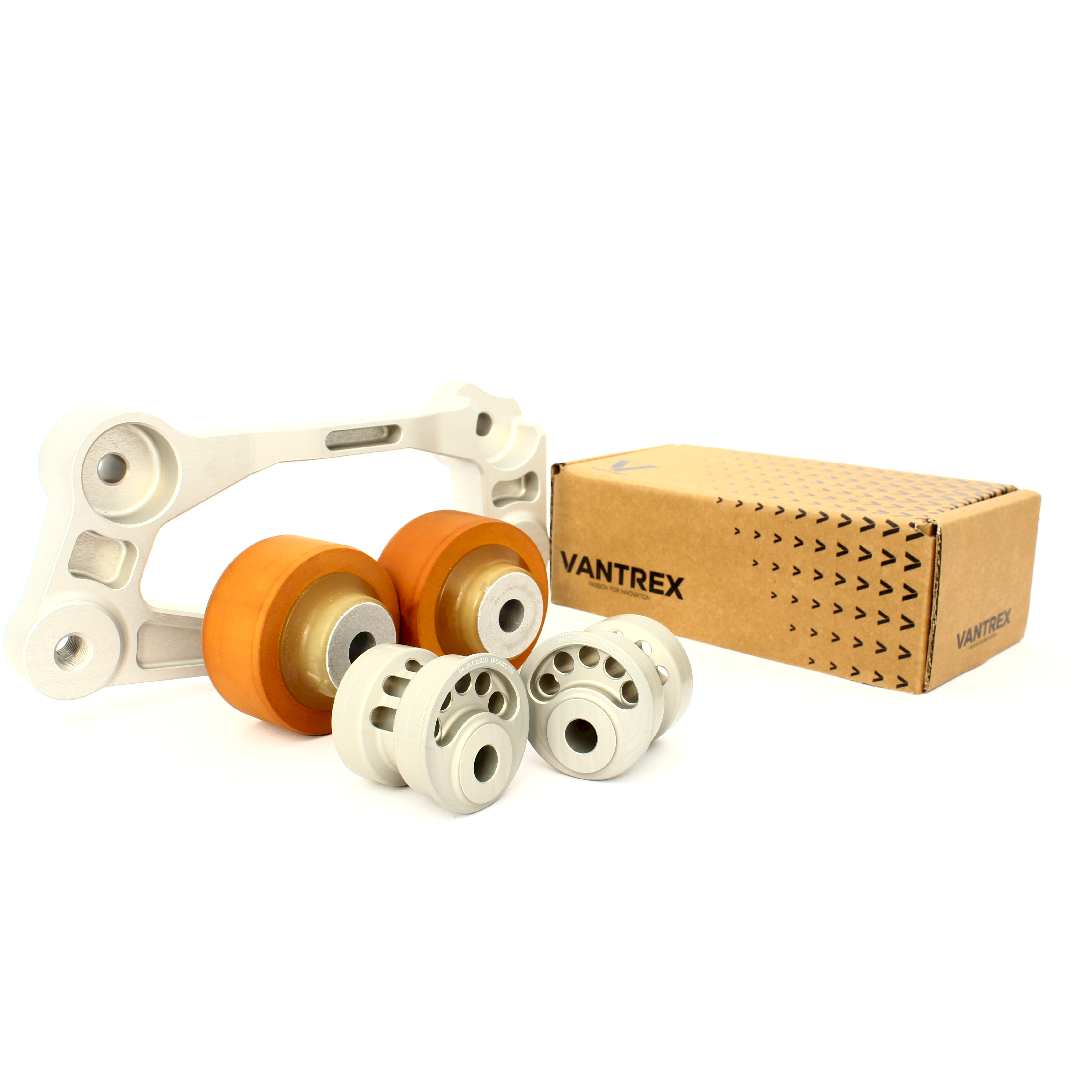

This mount kit replaces the rear differential bushings on F8X-series BMW M models (M2, M3, M4). Instead of solid aluminum bushings, it uses BMW OEM PUR rubber bushings to absorb drivetrain noise and vibration. With the addition of a second rear mounting point, the load on the bushings is reduced, even under hard use on track.

Key Features
• Adds a second rear diff mount for improved load distribution
• OEM PUR bushings reduce drivetrain noise and harshness
• Front mounts raise the diff by 10mm to improve axle alignment on lowered cars
• Increases power transfer and drivetrain response

Technical Details
• Front bracket bushings are offset 10mm to raise diff position
• Rear bracket replaces the factory single-mount design with a two-mount configuration
• Includes new bracket and upper mounting bolts
• Factory vibration absorbers are used with additional mounting point
• Bushings must be pressed into your existing front bracket
• Reuse your existing hardware or order new hardware separately

BMW Compatibility
• BMW F87 M2 (N55, S55, CS Racing)
• BMW F80 M3
• BMW F82/F83 M4 (Standard, GTS, GT4)
